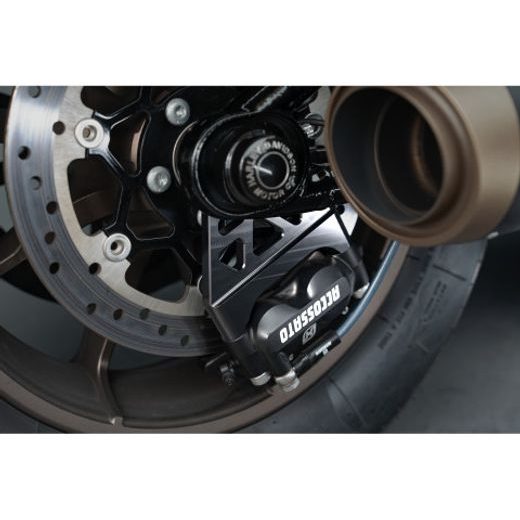

Radial Brake Caliper Kit Rear + Brake Flange ACCOSSATO KITA32 For Harley Davidson Softail

Radial brake caliper for motorcycles in forged aluminium, single-piece or two-piece CNC machined + FL010 brake flange for various Harley Davidson models.

Centre distance: 108 mm.

Aluminium pistons.

PZ004 Forged Monoblock - 4 pads per caliper - 2 compounds available: ST and OR

PZ012 Made from 2 CNC-machined parts - 4 pads per caliper - 1 compound available: ST

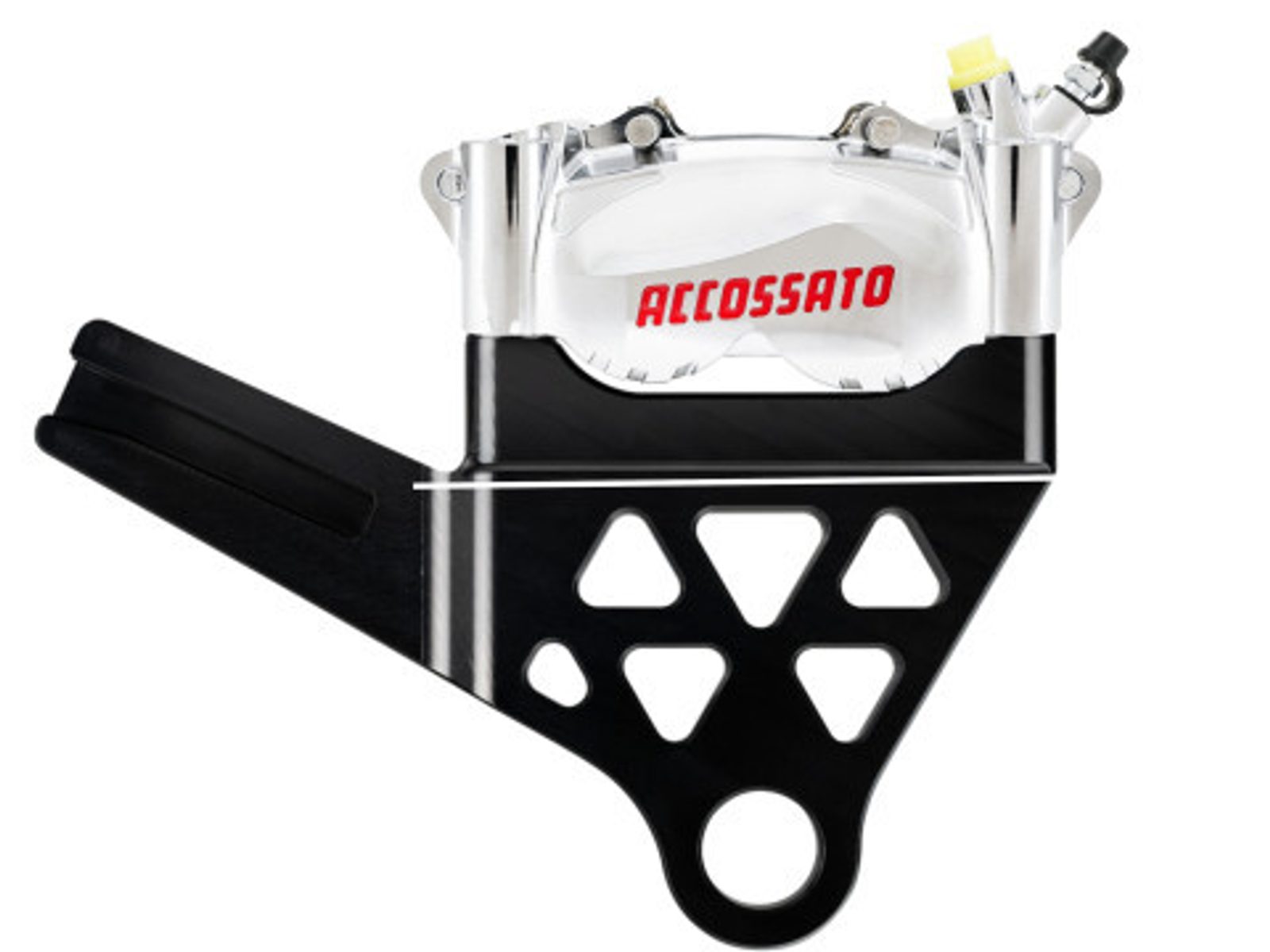

The Accossato rear bracket for Harley-Davidson Softail FL010 is made of high-strength aluminium and anodised to ensure durability. It offers a precise conversion of the rear system, maintaining rigidity and optimal alignment. Compatible with all major Softail applications, it ensures a reliable and safe technical upgrade.

Technical Specifications:

PZ004:

Manufacturing: Forged monoblock

Centre distance: 108 mm

Offset: 22.5 mm

Pistons: 4 aluminium pistons, diameter 34 mm

Dust seal: YES

Pads: 4 pads code AGPA134 included

Available compounds:

-            ORGANIC for longer-lasting performance and limited disc wear

-            SINTERED to ensure a high and constant friction coefficient at both high and low temperatures, as well as in wet conditions

-            Finish: The caliper can be black anodised or nickel-plated.

PZ012:

Machining: Made from two CNC-machined parts

Centre distance: 108 mm

Offset: 22.5 mm

Pistons: 4 aluminium 34 mm (2) + 38 mm (2)

Dust seal: YES

Pads: 4 pads code AGPA134 included

Available compounds:

-            SINTERED to ensure a high and constant friction coefficient at both high and low temperatures, as well as in wet conditions

-            Finish: The caliper can be black anodised or nickel-plated.

The Accossato rear bracket for Harley-Davidson Softail FL010 is made of high-strength aluminium and anodised to ensure durability. It offers a precise conversion of the rear system, maintaining rigidity and optimal alignment. Compatible with all major Softail applications, it ensures a reliable and safe technical upgrade.

Features:
The Accossato radial caliper is made according to the most advanced technology and through the use of the best materials on the market. The shape of the caliper has been realised by performing complex CAD studies, to guarantee the lowest possible weight, the optimum level of body rigidity and the best heat dissipation capacity generated by braking. During machining, the caliper body is 100% controlled by three-dimensional laboratory machines.

4 Reasons to choose an Accossato brake caliper:

1-      Aesthetics: because in Accossato radial calipers every aesthetic detail is taken care of

2-      Range Offered: Wide choice of models with different colours and wheelbase

3-      The quality of ‘Made in Italy’: all radial calipers are made in Italy. Each component has been studied in order to guarantee the maximum braking performance

4-      Control: before being assembled and put on the market, all Accossato radial calipers are 100% checked and tested

Warranty and Revision:

The warranty is valid for 24 months from the date of invoice.
Each caliper produced is associated with a serial number, which makes it individually identifiable from all other radial calipers. Removal of this serial number leads to loss of warranty and service.
The caliper overhaul carried out in-house by Accossato technicians is performed within one working week of receipt of the radial caliper. The overhaul includes: external inspection of the product, disassembly of the caliper in all its parts, visual inspection under a microscope of each component of the caliper, visual inspection of the inside of the caliper body, replacement of seals, assembly of all parts, static test and dynamic test. Replaced parts are scrapped and from the time of the overhaul, the caliper acquires an additional 12 months of warranty upon presentation of the invoice. A further (second) overhaul does not extend the product warranty. The overhaul does not include the replacement of other external parts not mentioned. In the event of a fall, the overhaul is only carried out if the essential conditions are met so that the calliper can be restored to optimum condition, equal to a new calliper.
